DIY, Adding PIR camera, SD card memory, easy-to-install and operation. Cost-effective. Multi-functional and useful for home and commerce!

It is the latest DIY video recording and alarm combined system, in the original camera device based on the latest development out of a revolutionary product, but also the worlds smallest "hard disk" recorder. The point is that product innovation, subtly anti-theft alarm and video surveillance video organically integrated. Any burglar alarm triggered at home and abroad,the PIR camera to start "video recording system" Automatic Video Storage 2 minutes live video data to uncover criminal cases of public security departments to provide the most direct and effective evidence.

This is a 30-megapixel linkage alarm recording system, compact, concealed installation, infrared night vision video clarity; host with any wireless, wired alarm supporting the use of traditional anti-theft alarm feature upgrades as the worlds original -- "The new concept of smart card-type alarm video recording system." The new product applies to: villas, houses, shops, corporate finance, hotels, small supermarkets, warehouses and other unmanned posts burglar alarm, monitoring video.

1) Linkage alarm recording function, the host receives the alarm signal is triggered, the automatic video recording 2 minutes, the image data are stored in SD card.

2) Built-in 300,000 pixel digital camera.

3) The video resolution of 320x240 AVI video file format, no voice message, the computer can play.

4) Support real-time clock adjustment, SD card video playback images marked with time information to facilitate investigation and evidence collection.

5) Video, image files cycle storage, "FIFO", automatic covers, and never stop.

6) Support computer, SD card can easily query the video image files, play, backup.

7) The host settings are 40 infrared light, when the low light, the infrared light automatically open, the video clear picture quality.

8) The system configuration 1GB SD card(max 1G), each alarm can automatically store 2 minutes live video recording. Power-down save in the SD card after the video image files are not lost.

9) Optional additional 1600mA 3.7V Li-ion battery, power outage can also be a normal standby operation. support 72 hours in stand-by mode

1. The host inserted SD card (SD card formatted as FAT32); the SD card Oblique upward to insert the host to the SD card slot (if depressed will pop up);

2. Code program: Connect with power, waiting for Red light changed into Green light, press the switch of the battery cover, the light turned into Red light. Take one new detector or new remote control to send wireless signal. The Red light flashes, you will hear beep sound from the host. It means the new detector is coded successfully. You also can be continues to code the next one.( the zone code of the detector preset for 1000 (D0~D3) )

3. After coded, press the switch of the battery cover to exit operation. Or just wait for 20 seconds to exit it.

4. The host to switch down; red light 3 seconds or so, turned the green light to enter standby.

5. When the burglar alarm is triggered, automatic start recording video, the red light flashes on the host computer; continuous recording 2 minutes after the stop, the host of green light lighting.

6. Remove the SD card records indicate the time recorded video recording files, use the card reader on your computer query.

1.12 wireless zone, 2 wire zone

2. Three different alert setting:1.Panic call,2.SMS only,3.telephone call only.

3. Wire panic zone can be set, system can make panic call and SMS.

4. System AC power shut off alert

5. SMS control system armed/disarmed/power status/initial reset

6. High siren or horn to scare away intruder

7. Talk-back through speaker(extension function)

8. Voice guide to retrieve alert message

9. Voice guide to remote operation and control to avoid wrong operation

10.SMS to remind of error operation

11.Learning wireless horn or flashing siren to enable to be armed/disarmed synchronously through telephone

12. Default zone name and message, different zone for different SMS message.

13. Compatible with centre monitoring station

14. If using GSM centre monitoring station, it can arm/disarm the users' control panel by two ways.

15. Adopted advanced processor to monitor CPU working status. If control panel failure, please reset it and restart it.

16.Back-up battery inside control panel to keep continues to work if AC power shut-off

17. Memory function, if power is cut off, the setting is not lost

18.Take pictures as alert is happened. it can work with picture capture (Simple CCTV surveillance system)

19. Exit door delay function automatically.

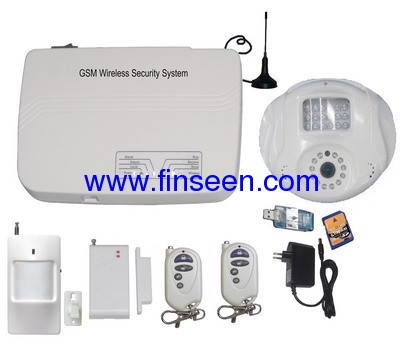

1, infrared video hosts x 1

2, universal angle braket x1

3,5 V1000 mA Switching Power Supply x1

4.burglar alarm system set: one control panel with internal siren and back up li-ion battery, one magnetic door sensor, One pir detector, one wired mini siren, two remote controllers, one telephone line, one adaptor

Select Accessories: SD Memory Card 1~16GB
